Alpha D200 Ground Penetrating Radar
• Gas pipelines
• Water supply lines
• Cables
• Underground voids
Key Features
• Built-in 200MHz antenna
• Compact, lightweight, low-power integrated design
• Compatible with Windows and other platforms

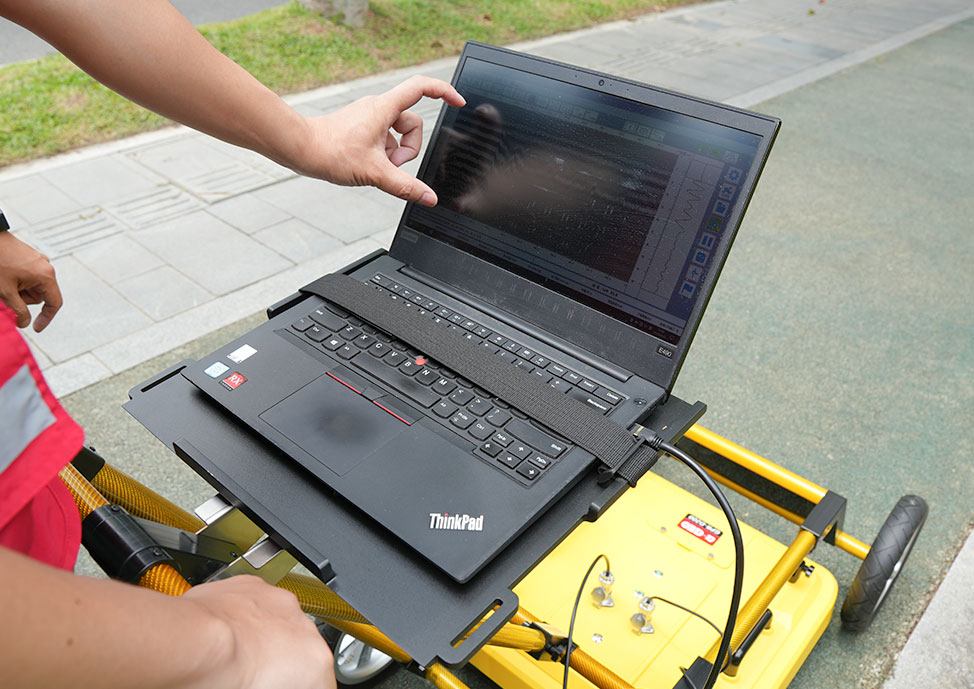

• Real-time acquisition software (SDI-GPR) and data processing tools
• User-friendly interface for quick adoption
• Large-capacity hard drive storage for easy data preservation
Software Functions
• Reference subtraction, filtering, background processing, auto-gain
• Gain adjustment

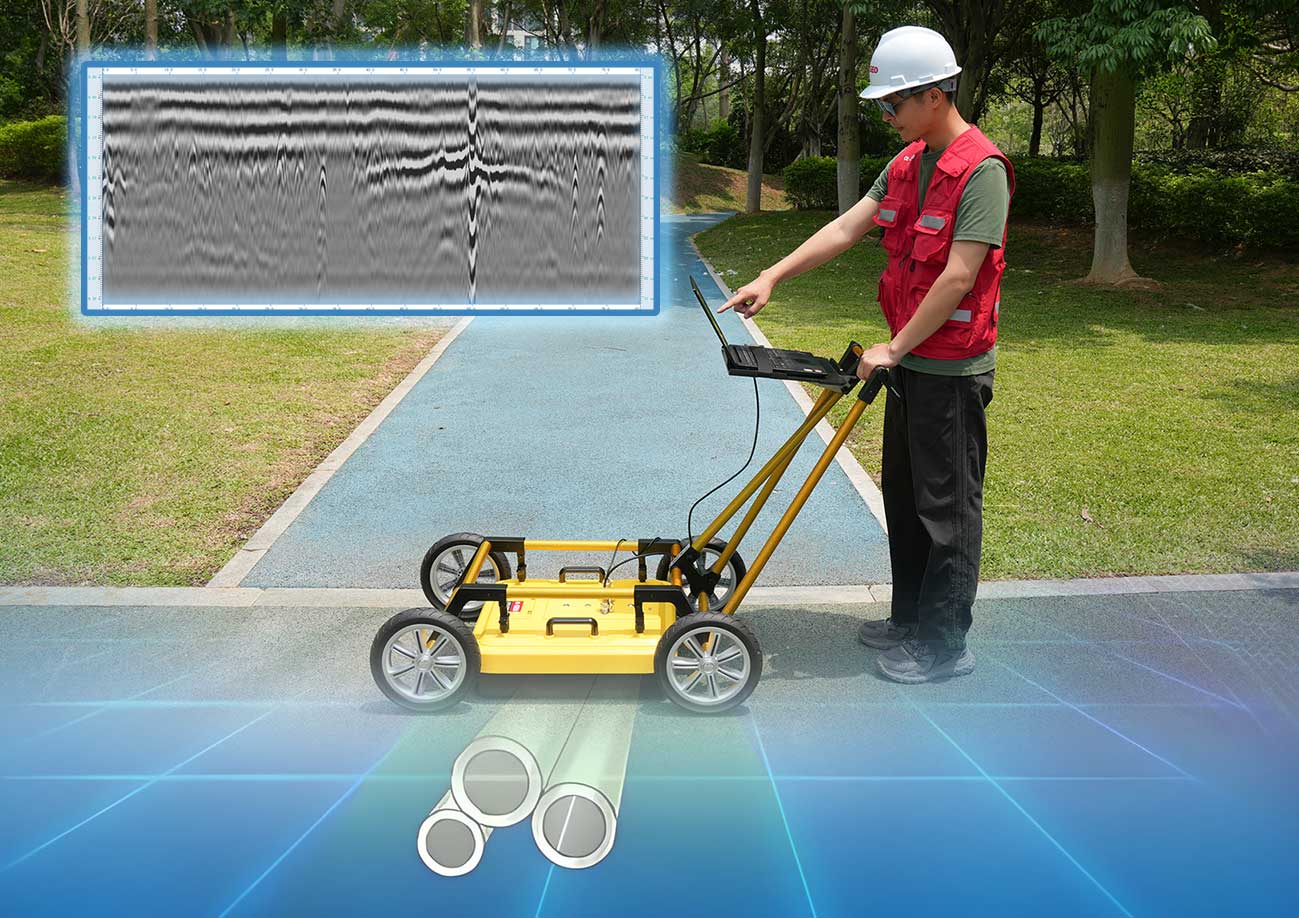

• pipeline identification
• Report generation, printing, and export
Technical Specifications
Simple, durable, and easy to operate, it is perfectly suited for mobile working environments in the field.
Technical Specifications
•The ALPHA D200 supports both wired (Gigabit Ethernet) and wireless (dual-band Wi-Fi) connectivity for data transfer and real-time control.

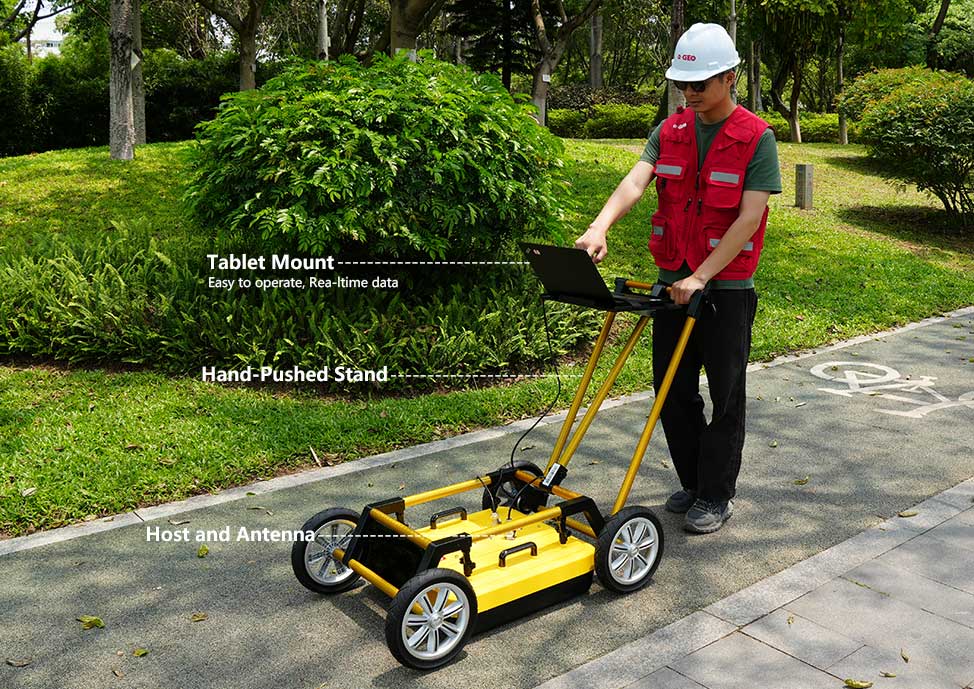

•Alpha D200 features an industry-leading integrated design of host and antenna, offering compact size, lightweight construction, and low power consumption.
Its streamlined software interface ensures user-friendly operation with quick onboarding capabilities.
Specifications
| Adjustable sampling frequency | 50K–800kHz |
| Selectable sampling points | 256 to 32,768 |
| Time window range | 5ns–1μs |
| Resolution | <2ps |
| Signal-to-noise ratio | 160dB |
| Dynamic range | 168dB |
| Display modes | Pseudocolor, stacked waveforms, grayscale |
| Measurement modes | Point-by-point, distance-triggered, continuous |
| Antenna-Host Technical Parameters | |
| Antenna Frequency | 200MHz center frequency |
| Detection Depth | 0–8m (under ideal conditions) |
| Dimensions | 55×51×16cm |
| Weight | 9.3kg |
| Applications | Metal/non-metal pipelines, underground voids, etc. |
| Battery Run Time | ≥15 hours |
| Power Consumption | <6W |
| Operating Temp | -30°C to +70°C |
| Storage Temp | -40°C to +80°C |
| Battery | Built-in rechargeable Li-ion, 14.8V |
| Max. Ground Clearance | 2cm during operation (adapts to terrain) |
| Data Transfer | Dual wireless/wired network support |
| Temp. Compensation | Built-in to minimize environmental impact |
| Interference Shielding | Shielded antenna design reduces human/environmental noise |
| Cart Design | Ergonomically balanced for easy operation |
Note: Specifications may vary with product upgrades. Refer to the actual product for details.
Warranty: 1-year coverage for non-human-induced damage.
